The Lexus NX Custom Steering Wheel Guide

The NX is the Lexus that does the school run and the long holiday drive in the same week. That mix shows on the rim before it shows anywhere else. A custom Lexus NX steering wheel renews the surface your hands use most, and the rest of a light cabin stays as it is.

Two generations carry the badge, and the wheel changed between them. The checks below cover what fits, what has to be reused, and how to confirm the details before an order goes ahead.

Which NX You Drive

The two generations differ more than the badge suggests. Find your row below, then let us confirm the detail from photographs of your own car.

Series	Model and typical years	What usually matters
AZ10	From 2014 to 2021, including the NX300h hybrid	Earlier button layout and a different airbag housing; confirm before ordering
AZ20	From 2021, including the NX350h and NX450h+	Newer switchgear and trim differences between grades

The model year alone will not settle a build. Owners sometimes buy a wheel from another grade, and a previous keeper may have fitted a later one. The option list and a photograph carry more weight than the badge.

Why the NX Rim Ages Differently

Hybrid motoring is quiet, and that changes how the cabin wears. With less engine noise to mask it, owners notice a shiny rim sooner than they would in a louder car.

Short trips do the rest. A compact SUV spends much of its life on school runs and errands. The hands then land in the same two places many times a day. Repeated contact polishes the leather long before the seats look tired.

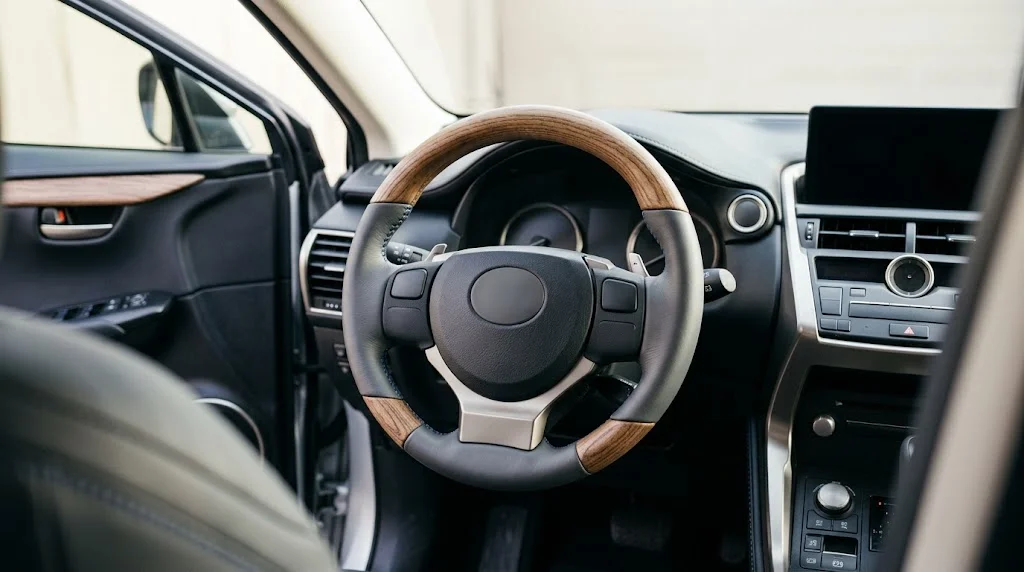

The wheel above shows how the two materials meet on an NX rim. The cabin around it stays exactly as it left the factory.

Finishes for a Compact SUV

Four finishes cover almost every NX order we build, and each behaves differently over years of family use. The grid compares how they feel and what they ask of you.

Finish	How it feels	Upkeep	Suits
Matte carbon on the upper and lower rim	Restrained, low sheen	Wipe over	Cars parked outdoors
Perforated black leather grips	Cool and dry	Balm twice yearly	Daily family driving
Alcantara grips	Firmest of the four	Brush every few weeks	Weekend and mountain roads
Smooth Nappa	Softest of the four	Damp cloth	Long-distance touring

Matte carbon with perforated leather is the pairing most NX owners settle on. The carbon sits where palms never rest, and the leather covers the grips. The leather keeps the surface comfortable after the car has stood in the sun.

How to Confirm Your Lexus NX Fitment

Four items answer most enquiries. Send the series and the full option list first. Then add a daylight photograph of the wheel face, and one of its rear with the airbag out.

Those images show us the spoke profile, the button cluster and the plug shape. Tell us whether the car is a hybrid, whether it has paddles, and whether the rim is heated. A dealer-fitted wheel from another grade is the surprise we meet most often.

Have these ready before you write to us:

• Series and model year, read from the car rather than the paperwork.
• The full option list, including a heated rim or an assistance pack.
• A photograph of the wheel face, taken in daylight.
• A photograph of the rear with the airbag out, taken by a technician.

Whether a Lexus NX steering wheel fits your car turns on those details rather than the badge. We cut nothing until the match is confirmed, and a second photograph is cheaper than a second rim.

Controls That Carry Over

A better surface should not disable a working switch. Every build reuses the frame and the loom already fitted to your car.

Function	Typical outcome
Airbag	Original module reused; the cover is built to suit it
Multifunction buttons	Retained when the original button frame is reused
Paddle shifters	Kept on cars that have them; cut-outs specified at order
Audio and call buttons	Retained, including cars with the premium sound package
Heated rim	Depends on the heating element and grade; confirm from your car

The heating mat and any sensing hardware sit behind the rim, so each needs its own photograph. Neither can be judged from the front face of the wheel.

Your Rim or a New Core

Rebuilding your own wheel leaves the electronics exactly as Lexus assembled them. The frame, the loom and the paddles all stay standard, and the original parts travel back with the order.

A newly made core is the other option, and it keeps your factory wheel in the garage. This suits a leased car that has to return to standard, or an owner who plans to sell. On an AZ10, used wheels are common enough that a donor core usually costs less.

Matte Carbon With Perforated Leather

Pairing matte carbon with perforated leather is the combination most NX owners choose. The carbon runs along the upper and lower rim, where hands rarely stay, and the leather covers the grips. Blue stitching then links the wheel to the cabin without drawing attention.

The close-up above shows the seam where the two materials join. Leather takes the wear, and the carbon stays clean because palms seldom rest there.

Rim Shape in a Raised Cabin

A round rim keeps the wheel continuous through every input, which suits a car used for distance. A flat lower section gives taller drivers more knee room in a cabin that already sits high. Neither shape changes the steering itself, so this is a comfort and appearance decision.

Owners who share the car with a taller driver tend to order the flat bottom. The difference shows up on the school run rather than once a year.

Fitting, Torque and the Airbag

An airbag sits in the middle of the job, so give the work to someone qualified. Isolate the battery and let the car power down fully before loosening any fastener. Follow the Lexus procedure for your chassis rather than a general guide found online.

Set the module down on something soft and away from the work area. Tighten the centre fastener to the figure in the workshop manual for your car, and treat that number as the only source. Afterwards, drive a short distance and confirm the rim is centred.

Test every button, the paddles if they are fitted, and the horn. A warning lamp that stays on means the car needs a scan before further driving.

Warranty questions follow any change of this kind. An aftermarket steering wheel does not automatically void a vehicle warranty under U.S. federal warranty law, but warranty coverage can still depend on whether the modification caused the specific failure being claimed.

Coding: When It May or May Not Be Required

Coding depends on the car rather than the finish you choose. Where the factory module, the loom and the vehicle specific parts are reused, further coding may not be needed. A module from another generation is a different case, and the control unit may then have to learn what is present.

Because that varies between cars, we describe coding as a possible step rather than a certainty. Send the series with images of both electronic units and we will say whether a workshop visit looks likely.

Common Compatibility Problems

Problems on these cars group into a few causes. A wheel from another generation often shares the badge but not the button frame. A heated rim on a car that never had one leaves a spare plug and a control with nothing to do. The reverse case appears just as often.

Driver assistance depends on sensing hardware inside the factory rim, so replacing it can raise messages until the car is read. A cover shaped for one grade will not sit correctly on another. That is why we ask for photographs of the face and the rear together.

Before You Order

• Series and model year, taken from the car rather than the paperwork.
• The full option list, including a heated rim or an assistance pack.
• A daylight photograph of the wheel face.
• A photograph of the rear with the airbag out, taken by a technician.
• The grade, and whether the car is a hybrid.
• A heated rim, where one is fitted.
• A round rim, or a flat lower section.
• The two materials you want, and where each one belongs.
• Stitch colour, and whether a twelve o'clock stripe is wanted.
• A rebuild of your own wheel, or a newly made core.

Lexus NX Owner Questions

Will a wheel from one NX generation fit another?

Usually not, because the button frames and airbag housings differ. Each car is checked on its own merits before we agree to a build.

Is the heated rim retained?

Where the factory fitted a heated rim, usually yes. It depends on matching the matting, which we confirm from photographs of the rear.

Do you need my original wheel?

Only for a rebuild. A new core leaves your original with you, which suits a car that has to go back to standard.

Are the paddles kept?

On cars that have them, yes. Tell us which type is fitted and we will confirm compatibility before anything is made.

Does the finish suit a light cabin?

Yes. Matte carbon with light or black leather works with either interior, and blue stitching links the wheel to the trim.

How long does it take?

Ten to fifteen working days in production, then fifteen to twenty days for shipping. Expect twenty-five to thirty-five days from order to delivery.

Why Choose AKIUMI

The workshop in Guangzhou is factory-direct, and each rim is made after an order arrives rather than pulled from a shelf. Thirteen or more years of design, engineering and precision manufacturing sit behind the patterns we hold. The frame is checked against your car before the first cut.

Material, stitch and shape stay your decisions. Orders ship tracked worldwide with a three-year warranty and thirty days for returns via an RMA request. The same team answers questions through the build.
